Helical gears

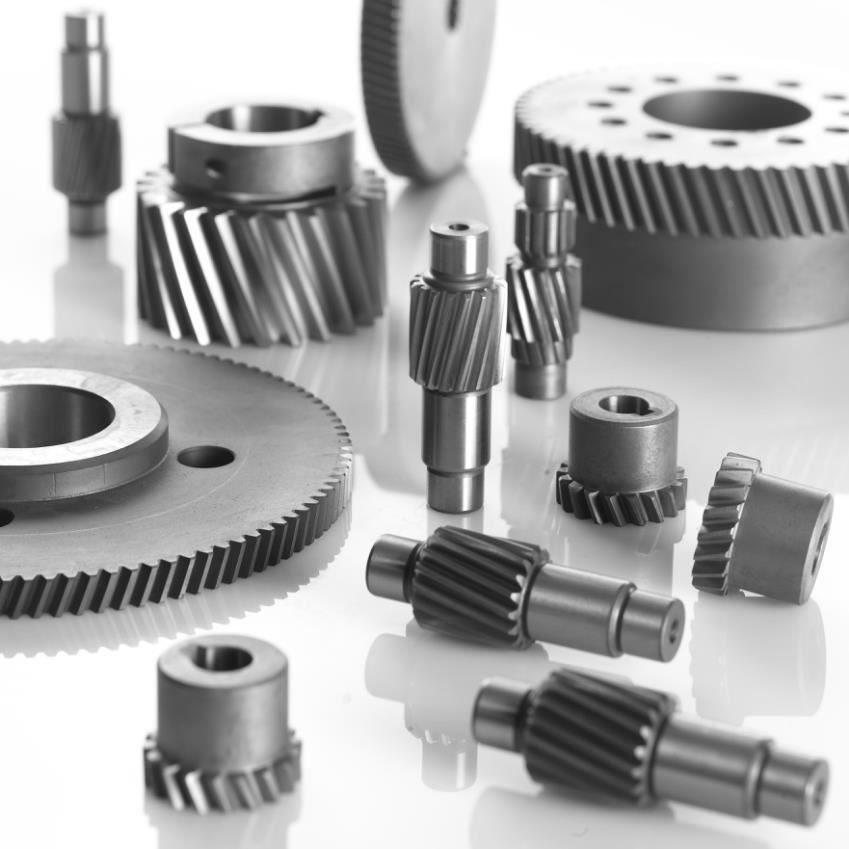

External helical teeth

  • Module 0.5 to 10
  • Maximum tooth diameter: 500 mm
  • Maximum tooth length: 1000 mm
  • Pressure angle: 20 °, 30 °, 40 ° and special
  • Quality: DIN 4 (rectified)
  • Max helix angle: 45 °



Helical gears
Helical gears

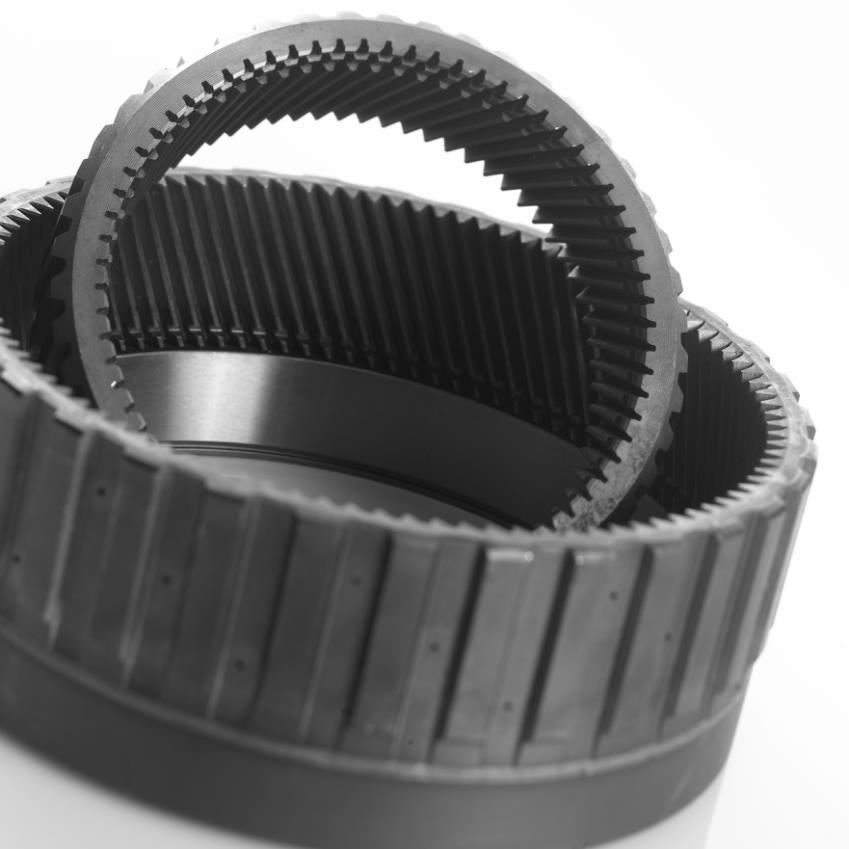

Internal helical teeth

  • Module 0.5 to 10
  • Maximum tooth diameter: 500 mm
  • Maximum tooth length: 100 mm
  • Pressure angle: 20 °, 30 °, 40 ° and special
  • Quality: DIN 9 (cut)
  • Max helix angle: 45 °
